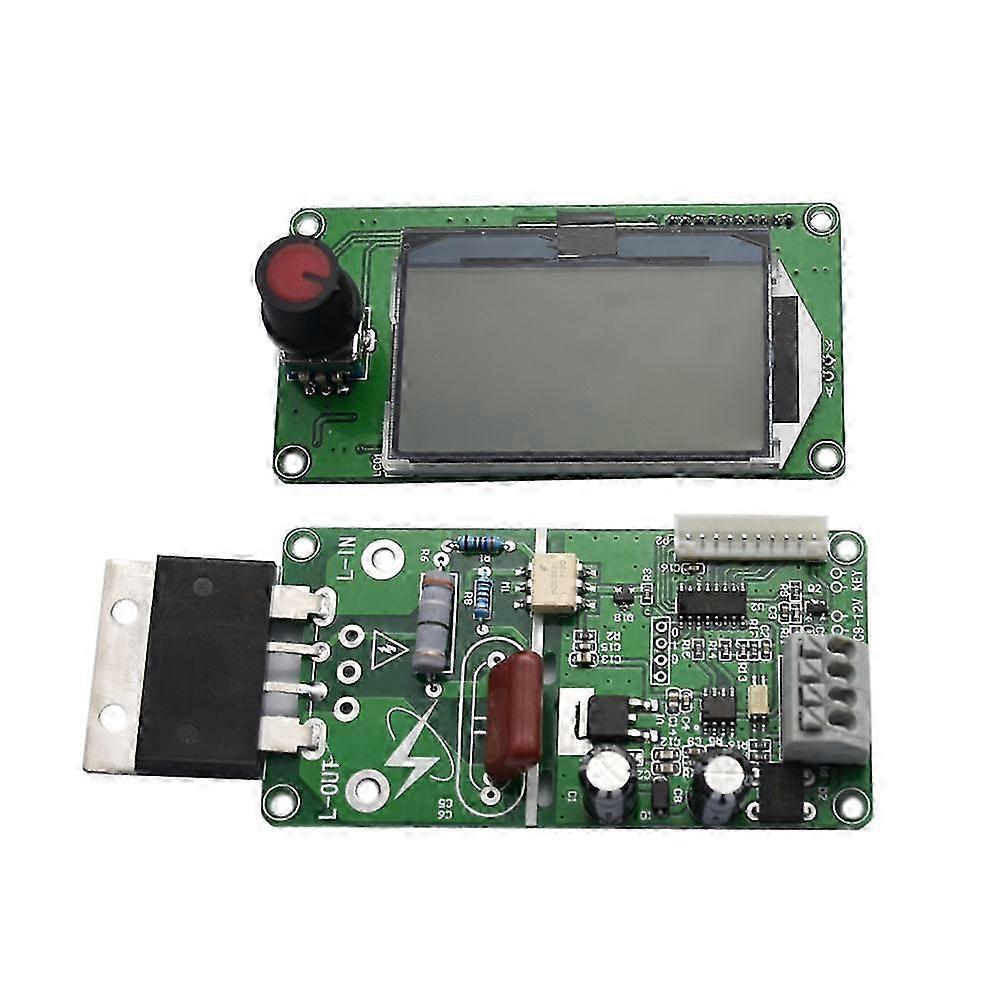

100a Digital Lcd Double Pulse Encoder Spot Welder Machine Time Control Board

RM84.00
+ RM41.99 Shipping

100a Digital Lcd Double Pulse Encoder Spot Welder Machine Time Control Board

  • Brand: Unbranded

100a Digital Lcd Double Pulse Encoder Spot Welder Machine Time Control Board

  • Brand: Unbranded
Price: RM84.00
Sold by:
RM84.00
+ RM41.99 Shipping

In stock

We accept the following payment methods

Description

III. Usage :Voltage calibration:The module has voltage compensation function, so the voltage calibration must be carried out when the first machine is installed, and in the , as long as the module power transformer is not replaced, there is no need to recalibrate. Of course, when you feel that the display voltage is wrong and it can be calibrated. The following are the mains voltages that are not calibrated and displayed during operation Pay attention to the safe use of the high voltage part during installation. When the usage frequency and power are high, silicon control rectifier requires external radiator to disspate heat.The power of the module driving load depends on the power of silicon control rectifier (SCR). BAT41 (40A) can carry a microwave oven transformer, BAT100 (100A) can carry two microwave oven , and the recommended one for Loop transformer is 100A. Precautions for use:This module DIY needs to have certain electrician knowledge, if you are complete freshman, please refer to the electrician's knowledge before you start. Do not know the welding time and power of the welded parts, it is recommended that the welding time and power be adjusted from small to upper to avoid damage to the welding pen.Fault cause and troubleshooting,The electricity supply does not match the actual electricity voltage: re-voltage calibration. The solder joint is not secure or soldered: adjust welding time and power until satisfactory results are achieved.Can be set to save the last operation, the module double pulse trigger, turn off any set of trigger time, you can change double pulse to single pulse trigger.The main board and the display operation panel are separated, and the outer casing can be flexibly assembled. With grid voltage compensation, the output of compensation can be automatically adjusted according to the change of power supply, and the electric voltage of about 1 second can be displayed when triggered, so that the effective heat of welding is consistent with the welding parameters, and the welding spot is uniform. DIY or simple battery welder development welding. Welding of a single battery or battery pack. Multi-group data 12864 visual display, intuitive operation, convenient, single encoder parameter adjustment can make the operation simple and fast. With 0-9999 welding counting function, with 5 groups of sample storage parameters, can be stored even the electricity power is off, the number of wleding could be seen just by a glance. Time input 0-99 cycle (1 cycle is 20ms, for example, the adjustment value is 50, which is the welding time 1 second.), the stop time between 2 weldings is 0-99 cycles (1 cycle is 20ms, such as interval value 50, It is the interval of 1 second.) adjustable. Welding strength 30%-99% is adjustable. The module can isolate the strong and weak electricity by optical coupling, and design a reliable circuit for zero-crossing detection and voltage detection to the accurate phase shift of silicon control rectifier (SCR), which can be compatible with 40A-100A bidirectional silicon control rectifier (SCR). 9-12 V AC power input (using AC , other such as DC, can cause zero-crossing detection failure, can not trigger.) colour:green Material:Metal + PC Package Contents: 1 * Main Board 1 * Display Board 1 * Cable Only the above package content, other products are not included. Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
  • Fruugo ID: 332504742-732785749
  • EAN: 9047435068411

Product Safety Information

Please see the product safety information specific to this product outlined below

The following information is provided by the independent third-party retailer selling this product.

Product Safety Labels

CE Mark
Safety Warnings:
  • Keep Away from Heat: Do not expose to open flames, sparks, or high temperatures
  • Avoid Direct Sunlight: Store in a cool, dry place
  • Handle Carefully: Do not puncture, crush, or disassemble.
  • Follow Storage Guidelines: Adhere to recommended temperature and storage conditions

Delivery & Returns

Dispatched within 24 hours

  • STANDARD: RM41.99 - Delivery between Wed 15 October 2025–Wed 22 October 2025

Shipping from China.

We do our best to ensure that the products that you order are delivered to you in full and according to your specifications. However, should you receive an incomplete order, or items different from the ones you ordered, or there is some other reason why you are not satisfied with the order, you may return the order, or any products included in the order, and receive a full refund for the items. View full return policy
