The moisture meter can quickly measure the moisture content of the grain.
1. Flow control: When water flows through the water flow rotor assembly, the magnetic rotor rotates and the speed changes with the flow rate. The Hall sensor sends the appropriate pulse signal and transmits it back do of the controller to assess the volume of water flow and its regulation.
2. Water flowmeter: It mainly consists of valve body, water flow rotor assembly and Hall sensor.
3.
4. Stable operation: Resistant to high temperature, allows stable operation and start-up at low pressure.
5. Easy to install: Designed to be light weight and small size, very easy do store and install.
. LIQUID FLOW SENSOR THREAD YF-B10
. LIQUID FLOW SENSOR THREAD YF-B10
Specification:

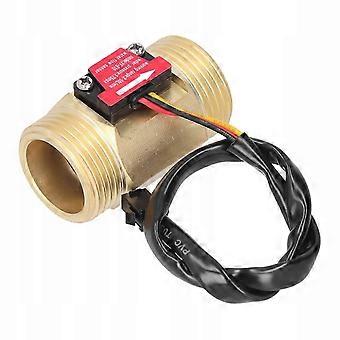

Item Type: Water Flow Sensor
Output signal: NPN output pulse signal.
Model: YF-B10
Interface size: 1,3 inch British system external thread.
Rated Voltage: 24VDC
Inner diameter: approx. 24.38 mm / 1 inch
Outside diameter: approx. mm / 1.3in
Thread length: approx. mm / 0.5in
Material: Brass
Water pressure resistance: >1,75 MPa
High output pulse level: > DC4.7V (DC5V input voltage)
Output pulse duty cycle: 50% 10%
Load capacity: 10mA (DC5V)
Insulation resistance: >100MΩ
Flow range: 2 50 l/min 5%
Tightness: close each hole, add 1,7MPa water pressure test for 1 minute, no leakage and deformation.
Flow pulse characteristics: F(8xQ-4)5%, F is frequency, Q is L/Min.
. LIQUID FLOW SENSOR THREAD YF-B10
. LIQUID FLOW SENSOR THREAD YF-B10
List of packages:
1 x Water Flow Sensor
. LIQUID FLOW SENSOR THREAD YF-B10
. LIQUID FLOW SENSOR THREAD YF-B10
Note:
1. Strong impacts and chemical erosion are strictly prohibited.
2. Throwing or collision is strictly prohibited.
3. Install according to the direction of the installation arrows on the product.
4. The temperature of medium should not exceed 120 .
. LIQUID FLOW SENSOR THREAD YF-B10
. LIQUID FLOW SENSOR THREAD YF-B10
Wiring method:
1. Red IN: connect do positive pole;
2. Yellow OUT: signal output line;
3. Black GND: Connect do the negative pole.
. LIQUID FLOW SENSOR THREAD YF-B10
. LIQUID FLOW SENSOR THREAD YF-B10
Note: Due to the light and screen setting difference, the item's color may be slightly different from the pictures. Please allow slight dimension difference due to different manual measurement. Sold by-dadangjia
-
