描述

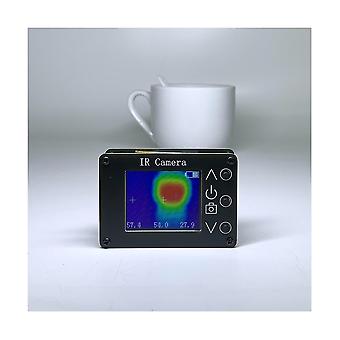

1. Module: MLX90640_CSB
2. Use MLX90640ESF_BAB IR Sensor
3. Resolution : 32x24
4. Temperature measurement range : 40~300
5. Measurement accuracy : +/2(Central area,0~100)
6. Operate temperature : 10~50
7. Operate humidity: 70%
8. Refresh rate : 8HZ
9. No need to calibrate
10. : 55x35
11. Display center point ,maximum and minimum temperature
12. Make photo(Can saved 90PCS photos, connect to computer, copy and delete)
13. Rechargeable Battery
14. TFT size : 1.8inch(display resolution:160x128)
15. Product size : 66x46x20mm
16. Power port : USB TypeC 5V/1A
17. Built-in 4M memory chip, which can about 90 pictures
Operate description:
1. Charging : Use USB TypeC line, 5V/1A
2. Open/ : Press Middle Key Long
4. Make photo: Press Middle Key
5. Review photo: Press Up or Down Key
6. Quit photo: Press Up or Down Key Long
7. Copy photo : connect computer with usb line, computer will a disk.
Note: can not change photo in disk or put other file into the disk. connect computer , pls fully and shutdown.
type: Thermal Imager
color:Black
Material:PCB+plastic+metal
Package Contents:
1 x Mini Thermal Imager
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
-
Fruugo ID:
233458492-499279982
-
EAN:
691189243977
