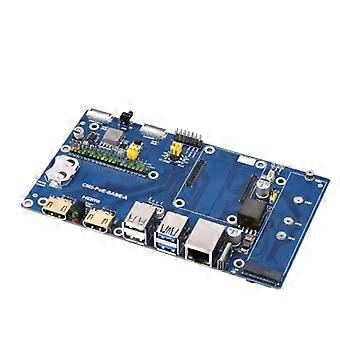

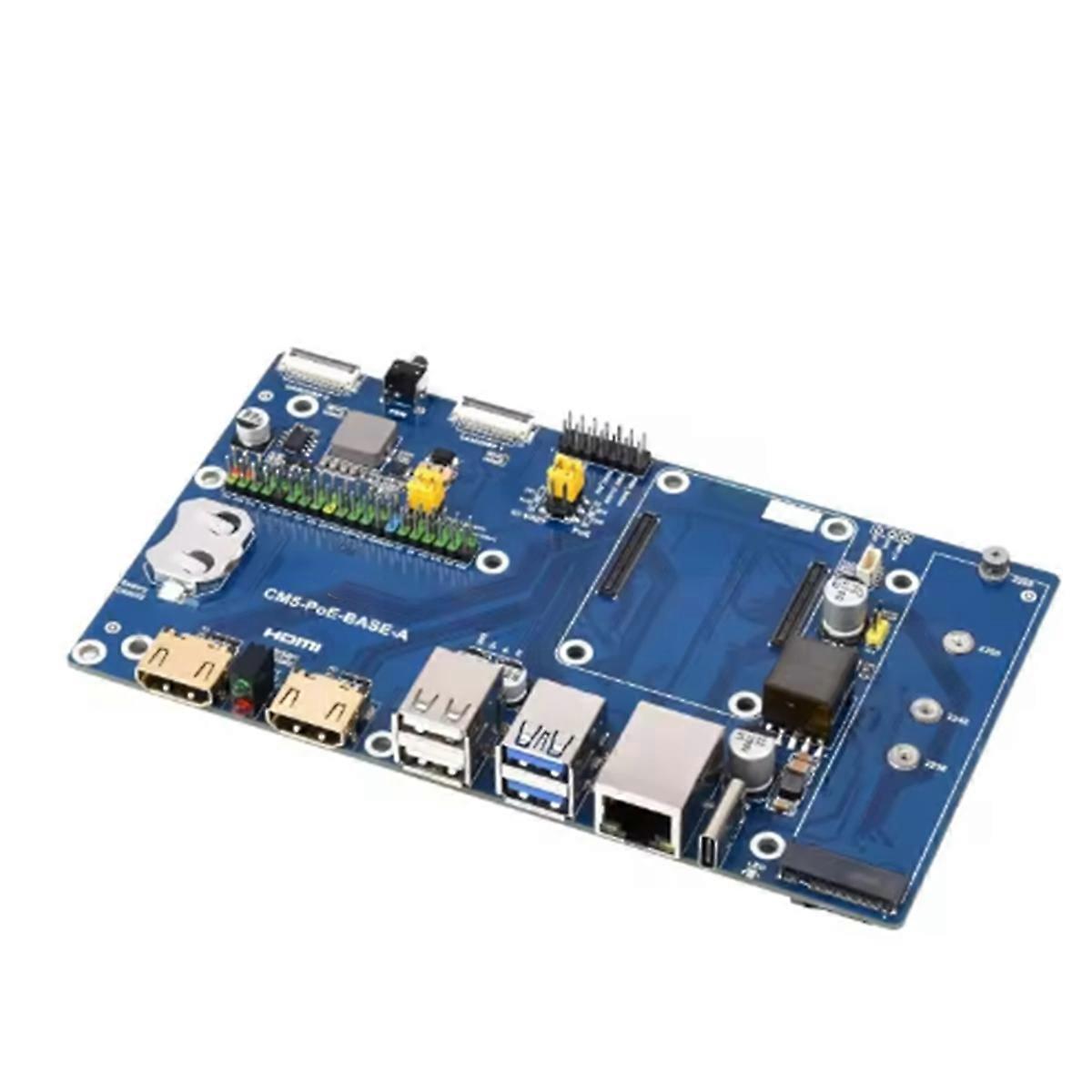

for Compute Module 5 IO Board With PoE Feature, For All Variants Of CM5 Compute Module 5 PoE Base Board Suitable For Evaluating for The CM5 Or Being Integrated Into End Products PoE Base Board for all Compute Module 5 Variants. CM5 SOCKET:suitable for all variants of Compute Module 5. NETWORKING:Gigabit Ethernet RJ45 connector, integrates 802.3af/at-compliant PoE circuit (5V/5A). CONNECTOR: 40PIN GPIO header. USB:USB 3.2 Gen1 x 2, USB 2.0 x 2. MIPI:4- MIPI interface x 2 (22pin 0.5mm FPC connector). VIDEO: port x 2, supports 4K output. RTC:Real-time clock with / ML2032 battery holder. STORAGE:TF card slot for Compute Module 5 Lite (without eMMC) variants. FAN CONNECTOR:5V, JST- PWM 4PIN connector NVME:PCIe Gen2/3 x 1 POWER INPUT:5V 5A DIMENSIONS:160 x 90 (mm) Power Over Ethernet Providing Both Network Connection And Power Supply For Your In One Cable Supports M.2 NVMe Solid State Drive Faster Reading/Writing Speed Compared To The TF Card Slot Of , Greatly Improving Reading/Writing Efficiency Of The System Or Files, Support Booting From NVMe Solid State Drive for reference only, please refer to the Package Content for detailed part list Compatible With Multiple Sizes NVMe Drive Slot Support Note: Only supports the NVMe Protocol Solid State Drives. Rich Peripheral Connectors Onboard Connectors Including MIPI / M.2 / / USB / ETH / TF Card Slot Precise Cut-Out With Clear Label Each Cut-Out Is Completely Aligned With The Connector Cooling Fan Included Comes With Cooling Fan, Combined With The Airflow Vent, Better Heat Dissipation Wall Mount Support Wall Mount Holes On Two Sides, Handy For Mounting Application Examples Ideal For Applications With Multiple Peripheral Requirements, Or Other Industrial Context Color: As Shown Material: PC Package Contents: 1 * CM5 Compute Module Baseboard(The words on the product due to different product batches, but it not affect the use) Only the above package content, other products are not included. Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
