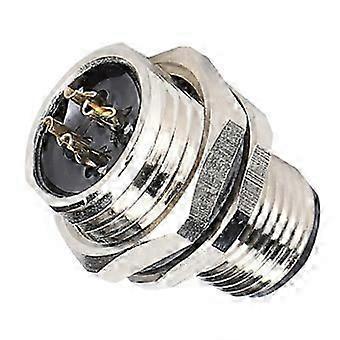

Function: 1. Panel-mounted socket M12 connector, nickel-plated brass shell with excellent 360-degree full shielding. 2. Complies with IEC 61076-2-101 Industry 4.0 agreement and NEMA2000 standard, ensuring stable and excellent performance. 3. Waterproof rating IP67, 4-pin plug adapter design, gold-plated brass pin material, not prone to corrosion. 4. Rated current of 4A and can support 500 mating cycles, with epoxy resin sealing material design. 5. Rated voltage AC/DC250V, M12BP4 panel-mounted socket design, simple and convenient for installation. Specification: Item Type: Panel Mounted Socket Connector Material: Brass Shell Material: Nickel-plated Brass Sealing Material: Epoxy Resin Pin Material: Gold-plated Brass Core Material: PA+GF/TPU Molding Material: TPU/PVC Rated Current: 4A Conductor Specification: AWG22, 0.34mm² Contact Impedance: ≤5mΩ Mating Cycles: ≥500 times Pin Number: 4 Standard: IEC61076-2-101 Applicable Temperature: -25℃~+80℃ Waterproof Rating: IP67 Hole Size: Approx. 16.1 x 13.5mm / 0.63 x 0.53in. Package List: 1 x Connector
