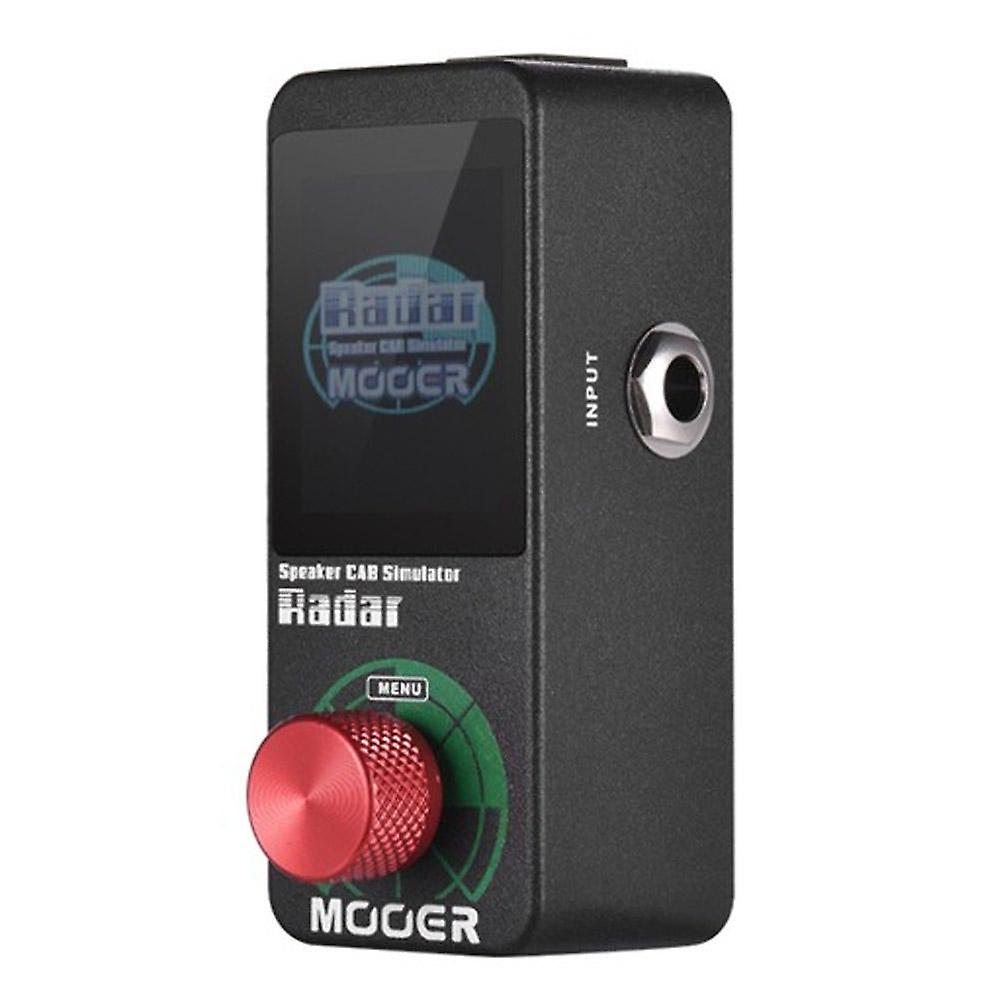

Radar Guitar Effects Pedal Professional Speaker Simulator with 30 Cab Models 11 Mic Models.    The RADAR is a full-featured professional speaker simulator which can be a permanent resident at the end of your pedalboard. Not only does it carry 30 cab models but it also has optional microphone and power amp simulation. Ideal for recording or hooked up to your favourite headphones for practice. The RADAR will transform your pedalboard into a complete guitar rig.    Features: -30 different speaker cab models;  -11 mic models;  -4 power amp models;  -Customizable EQ stage;  -Capable of loading custom IRS;  -Store and recall up to 36 user presets;  -Connect to PC editor via USB;  -Supports headphones and lineout;    Specifications: Input:1/4” mono audio jack.(Impedance: 100kΩ);  Output:1/4” mono audio jack (Impedance: 470Ω);  1/8” stereo audio jack (Impedance: 10Ω);  Sampling Rate:44.1K;  Sampling Accuracy:24bit;  Signal to Noise Ratio: 100dB;  Frequency Range:20Hz~20KHz;  Power Requirements:12V DC Only use the power supply provided;  Current Draw:300mA;  Dimensions:93.5mm(D) x 42mm(W) x 52mm(H);  Weight:150g;  Support:Windows 7/8/10; Macc 10.9 or Higher;  Package List: 1 * Effect Pedal;  1 * Power Adapter;  1 * Users Manual;    FIRMWARE UPDATE: -Connect your RADAR to the computer using a USB cable.  -Press and hold the “MENU” and power on the RADAR.  -This will boot RADAR into “Update Mode”.  -Open the STUDIO FOR RADAR software.  -Press the “START” button and wait for the update to complete.
