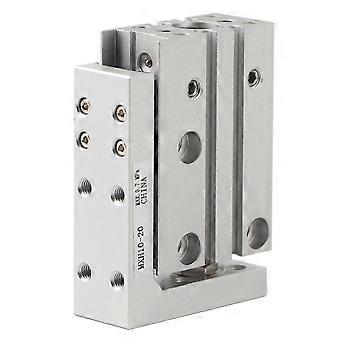

Small High Precision Pneumatic Slide Table Cylinder MXH10-20

RM389.00
FREE Shipping

Small High Precision Pneumatic Slide Table Cylinder MXH10-20

  • Brand: Unbranded
  • product image
  • product image
  • product image
  • product image
  • product image
Small High Precision Pneumatic Slide Table Cylinder MXH10-20

Small High Precision Pneumatic Slide Table Cylinder MXH10-20

  • Brand: Unbranded
RRP: RM624.00
Price: RM389.00
You save: RM235.00 (37%)
Sold by:
RM389.00
FREE Shipping

In stock

We accept the following payment methods

Description

Features: 1Equipped with linear guide bearings to improve non?rotating accuracy of plug rod. 2Standard type has a built?in magnetic ring and a travel induction magnetic switch can be installed. 3Air source can be connected from three sides, and air source can be connected from three sides. 4Optional adjustable stroke device can meet different needs. 5Can be used in automotive, food processing, material handling and robotic applications. Condition: 100% Brand New Item Type: Pneumatic Slide Table Cylinder Bore Diameter (mm): Approx. 10mm/0.4in Stroke: 10, 20, 30, 40, 50, 60 Guide Bearing Width: Approx. 7mm/0.3in Use Fluid: Air Action Mode: Double Acting Minimum Working Pressure: 0.06MPa Maximum Working Pressure: 0.7MPa Environment and Fluid Temperature: -10~ 70 (But Not Frozen) Piston Speeds: 50~500mm/S Allowable Kinesthetic Energy J: 0.025 Give Oil: Not Needed Buffer: Rubber Buffer at Both Ends Stroke Length Tolerance (mm): Approx. 1.0mm Port Diameter: M50.8 Optional Type: MXH10-10, MXH10-20, MXH10-30, MXH10-40, MXH10-50, MXH10-60 Material: Steel Package Included: 1 x Pneumatic Slide Table Cylinder
  • Fruugo ID: 418563311-882408895
  • EAN: 768416353362
