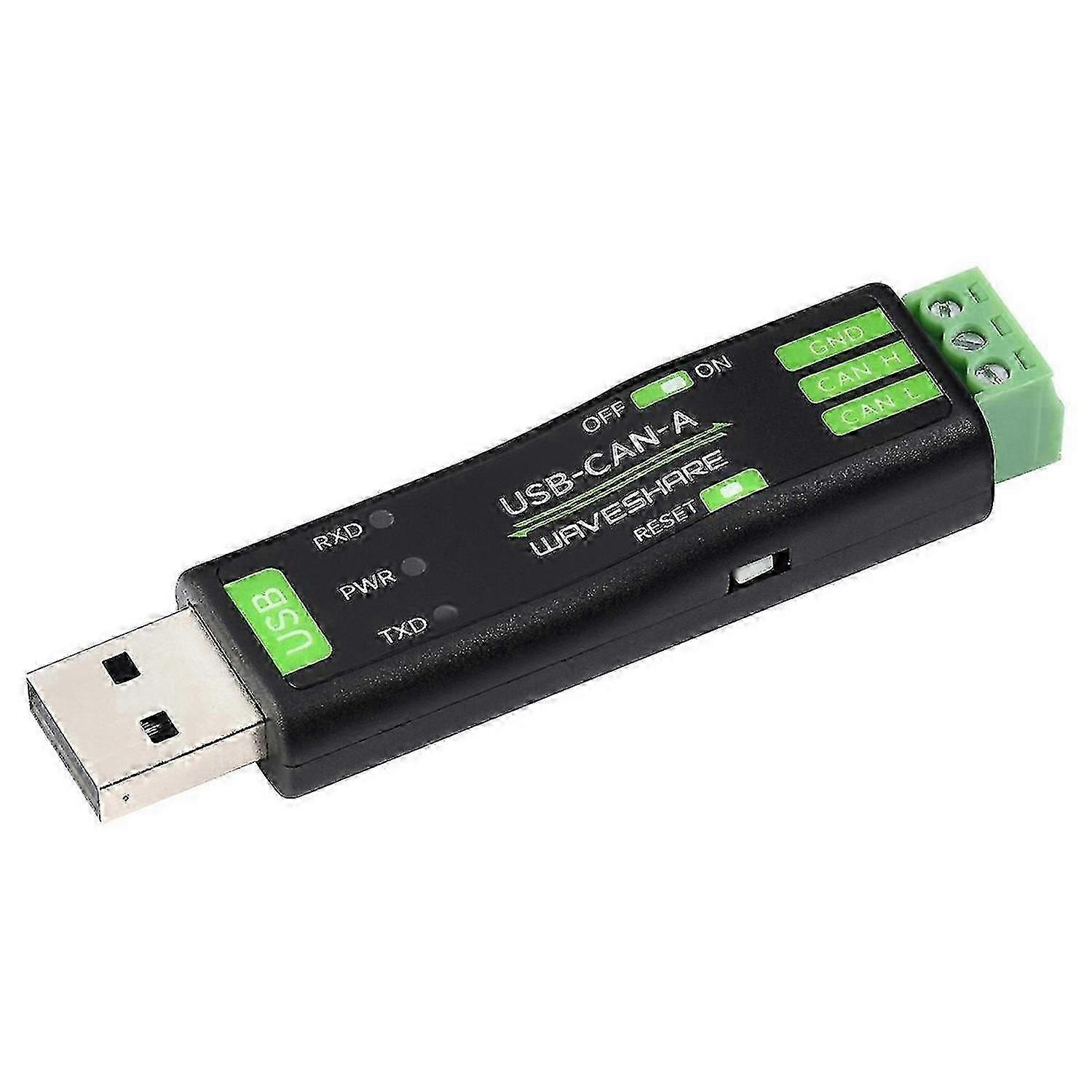

Waveshare USB to CAN Adapter Analyzer Model A, STM32 Chip Solution, Working Modes, Multi-System Compatible

RM219.00
+ RM27.49 Shipping

Waveshare USB to CAN Adapter Analyzer Model A, STM32 Chip Solution, Working Modes, Multi-System Compatible

Sold by:
  • product image
  • product image
  • product image
  • product image
  • product image
Waveshare USB to CAN Adapter Analyzer Model A, STM32 Chip Solution, Working Modes, Multi-System Compatible

RM219.00

Save RM405.00 (64%)

RRP

RM624.00
In stock
+ RM27.49 Shipping

14-Day Returns Policy

Payment methods:

  • Brand: Unbranded

Description

Waveshare USB to CAN Adapter Analyzer Model A, STM32 Chip Solution, Working Modes, Multi-System Compatible

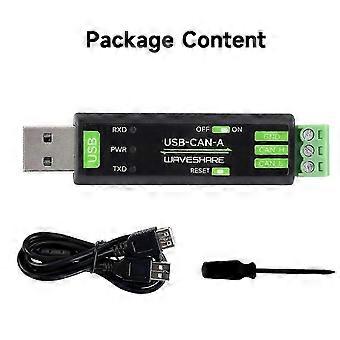

Supports CAN2.0A standard frame and CAN2.0B extended frame CAN baud rate is configurable in the range of 5Kbps-1Mbps Supports 4 working modes normal mode, loopback mode, silent mode, silent loopback mode Supports CAN data sending modes single frame, frames, manually, regularly and cyclic sending Supports CAN data receiving modes can be configured to only receive data from a certain ID, or specify ID to automatically answer the configured databrData can be saved as TXT or Excel Supports CAN bus detection for status checking Sending/receiving CAN data with time scale, allows sequentially displaying Baud rate of USB virtual port is configurable in the range of 9600 - 2000000bps 2000000bps by default Supports setting working parameters by configuration software or serial command, can be saved after power off Adopts STM32 chip solution, stable and reliable communication Onboard TVS Transient Voltage Suppressor, effectively suppress surge voltage and transient spike voltage in the circuit Comes with master computer software for Windows system, easy to use Easy secondary development, just need to modify the sending and receiving commands ColourBlack MaterialPlasticbrPackage Contents 1 USB to CAN Adapter Analyzer
  • Fruugo ID: 515208263-1051041369
  • EAN: 929246669676
